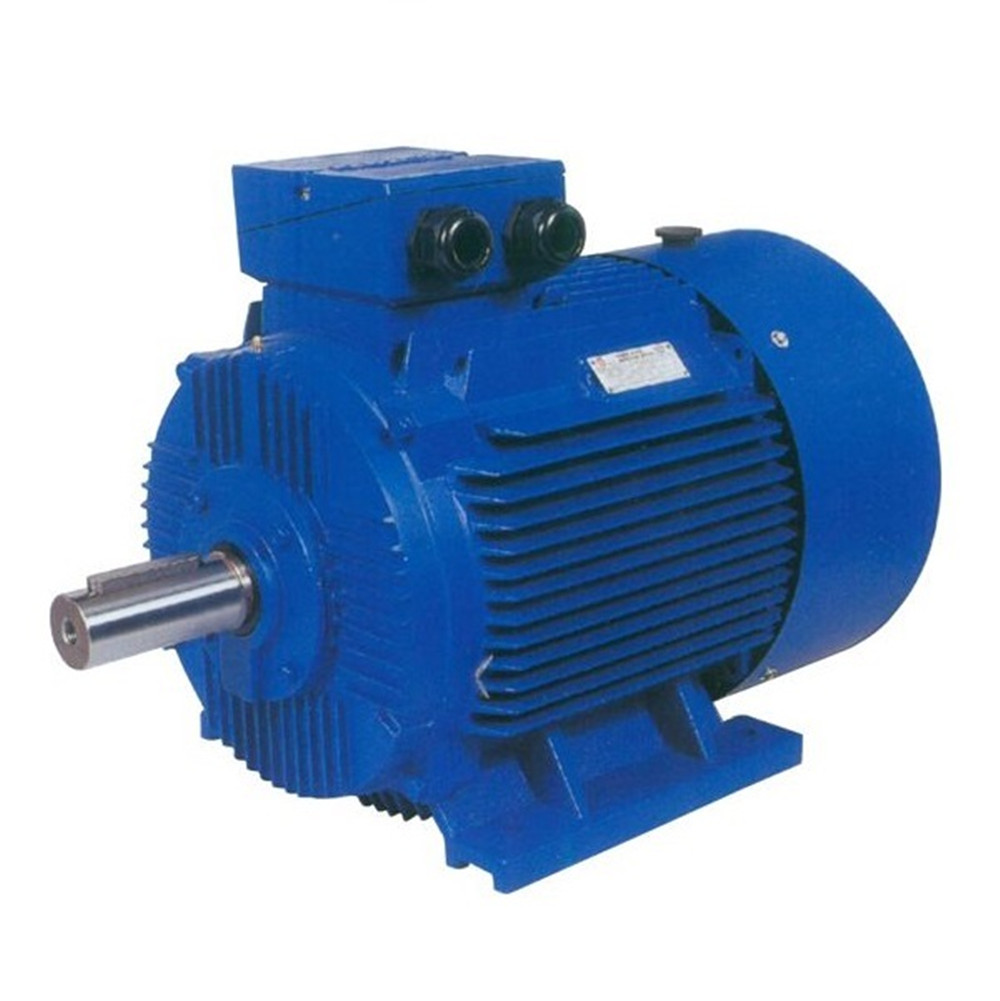

YB2-160L-4 15KW explosion-proof motor 460V/60HZ

  • YB2-160L-4 15KW explosion-proof motor 460V/60HZ
  • YB2-160L-4 15KW explosion-proof motor 460V/60HZ
  • YB2-160L-4 15KW explosion-proof motor 460V/60HZ
  • YB2-160L-4 15KW explosion-proof motor 460V/60HZ

YB2-160L-4 15KW explosion-proof motor 460V/60HZ

    Min. Order: 1 Set/Sets
    Packaging: Multilayer packaging
    Transportation: Ocean,Land,Air,Express
    Supply Ability: 100
    Port: Shanghai

Basic Info

Model No.: YB2-160L-4

Product Description

Product Description

YB2-160L-4-15KW 460V/60HZ

YB2 series motor introduction:
YB2 series flameproof three-phase Asynchronous Motor technical specifications (frame size 63 ~ 355). The standard number is JB7565-1999. According to GB3836.1-2000 Electrical equipment for explosive gas environment: General requirements and GB3836.2-2000"Electrical equipment for explosive gas environment Part 2: Explosion-proof type:" d "" Requirements, made of flameproof.
Explosion-proof mark is EXDI, ExdⅡAT4, ExdⅡBT4. It is suitable for underground mine fixed equipment (ExdI) containing methane or coal dust or containing explosive class Ⅱ, A, B grade T1 ~ T4 group of explosive gas or air and explosive content It is used as general power equipment on the equipment in the premises.

Model
YB2-100-2
YB2-160L-4W
YB2-160M1-2
YB2-160M2-2
Rated power (kW)
3
15
11
15
Rated current (A)
6.0
28.8
20.6
27.9
Rated speed (r / min)
2891
1460
2930
2930
Efficiency (η%)
87.1
92.1
91.2
91.9
Power factor (cosφ)
0.87
0.86
0.89
0.89
Rated torque N.m
9.9
98.1
35.9
48.9
Stalled torque Rated torque Tst TN
2.3
2.2
2.2
2.2
Stall current Rated current Tst TN
8.1
7.5
7.9
8.0
Torque Rated torque Tmax TN
2.3
2.3
2.3
2.3
Noise db (A)
76
75
86
86
Weight (kg)
57
153
136
144

Our company mainly deals in hardware tools, combined tools, electric tools, special tools for petroleum, metal processing machinery and petroleum drilling equipment. Diagonal Cutting PlierOil Drill PipesDrilling ToolsDiesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.


Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check valve, and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.


MOTOR07
Details Images
MOTOR08
YB2 motor use conditions:
(1). The ambient air temperature varies with the season, but does not exceed 35 ° C (under the coal mine) or 40 ° C (factory), and the ambient air temperature is -15 ° C.
(2). The altitude does not exceed 1000M.
(3) The relative temperature of the ambient air does not exceed 95% (when the temperature is 25 ° C) (under the coal mine) or the wettest monthly average relative humidity is 90%, and the average monthly temperature of the month is not higher than 25 ° C
MOTOR14
(4). Rated power is 380V, 460V, 660V, 380V / 660V
(5). The rated frequency is 50Hz/60HZ.
(6) The rating of the explosion-proof motor is a continuous rating based on the continuous working system (S1), which allows full-voltage starting.
(7) The motor adopts F-level insulation, and the temperature rise (resistance method) of the winding is determined as 80K (among which, the frame size of 315L is 2.4 and the frame size is 355, which is allowed to be evaluated as 105K). ).
